ScreenTrain TV ceiling mount adjustment options

360 degree rotating, sliding TV bracket
360 degree rotating, sliding TV bracket

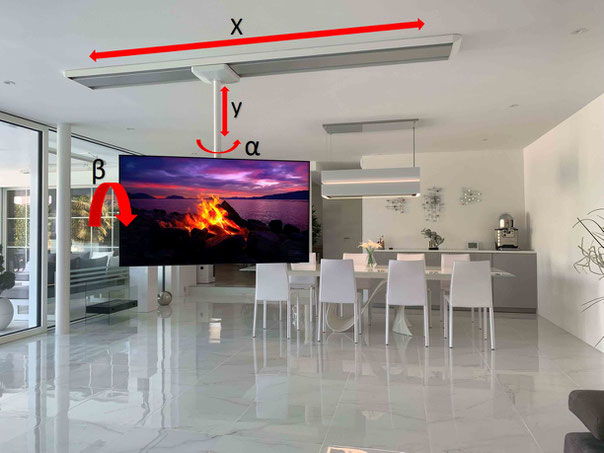

The ScreenTrain adjustment options are:


Length shift "X":

1.6m with 2 meter ScreenTrain

2.6m with 3 meter ScreenTrain

3.6m with 4 meter ScreenTrain


Height adjustment "Y" of the vertical telescopic tube (screw connection):

Dimension from ceiling to middle of TV:

110cm to 160cm adjustable in 10cm increments with screw connection

--> shortened vertical brackets for lower ceilings are available as accessories


Rotation "alpha" TV around vertical axis:

360 degree rotatable TV


inclination "beta" of the TV to the horizontal:

approx. 15 degrees tiltable TV
